HIGH RESOLUTION DIGITAL WIRELESS SYSTEM FOR FORKLIFT (TP01-723H2 TP01-8305)
Forklift MHE
HIGH RESOLUTION DIGITAL WIRELESS SYSTEM FOR FORKLIFT

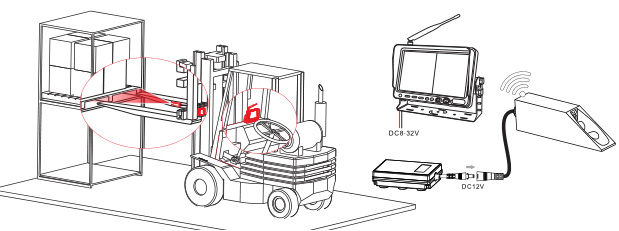

wireless camera system can be installed in a fraction of the time, cost and hassle of a wired camera system.Battery powered camera is mounted on the forklift load backrest or on the vehicle pointing to where you want to see - NO wires to run up and down the mast! The battery is unplugged and recharged as necessary and provides nearly 8 hours of power.
PRODUCT INFORMATION:
Features
★ ABS monitor housing endure high temperature. | ★ 7" High resolution color TFT-LCD. | |
★ Power input:8V-32V DC. | ★ Monitor circuit has protector for battery reverse(+/-). | |
★ LED backlight display with constant voltage constant current circuit protection. It can solve LED working temperature problems (the limit of LED backlight's current) and prolong life. | ★ Monitor OSD menu can set each channel camera image in 4 mode NOR/MIR/UP/ DOWN;the priority for each mode; each trigger cable can be set to trigger to any display mode; time delay setting. | |
★ Two channels digital wireless signal transmission. It supports sub-screen and two screens. | ★ Wireless car camera waterproof stainless steel forklift level IP67 |
Specification
Parts：TP01-723H2 Display Device：Color TFT-LCD Size：7" Digital Screen Operation Frequency ：2400 ~ 2483.5MHz Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE) Resolution：800×(RGB)×480 View Angle (LR/UD)：L/R: 70/70 U/D: 50/70 Contrast Ratio：500:1 Luminance(cd/m )：450 Response Time (ms)：25 Load Dump：DC 12+87V/400ms Operating Temperature：-20℃～+60℃ Storage Temperature：-30℃～+80℃ operating voltage range：DC8V～32V （ 5W Max） Dimension( L x W x T) ：(185X122X28mm) Transmission Power：18dBm with Power control | Parts：TP01-8305 Camera：Wireless waterproof and shockproof digital camera truck Image Pick-up Device：1/3" Color CMOS Picture Elements：NTSC:960(H)X480(V);PAL:960(H)X480(V) Horizontal Resolution：600 TV Lines Minimum illumination：1 Lux View Angle:45° Waterproof rating:IP67 Shockproof Rating:10G operating voltage range:DC12V Dimension:127(W) x 37(H) x 24.5(D) mm | Parts：TP01-MP7W Mobile Power:DC12V vehicle waterproof mobile power bank Capacity:DC12V vehicle waterproof mobile power bank DC Input:5V/12V(2A) DC Output:DC12V(600mA) Charging Times:＞800 cycle time Charging Ambient:0°to +60 Discharge Temperature:-20°to +60° Waterproof Rate:IP66 Dimension (mm) 95mm×72mm×29mm |

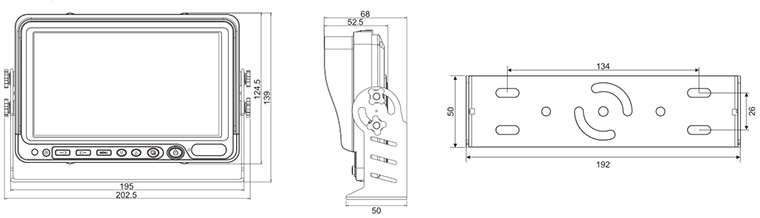

PRODUCT DIMENSIONS
